Funcție și introducere

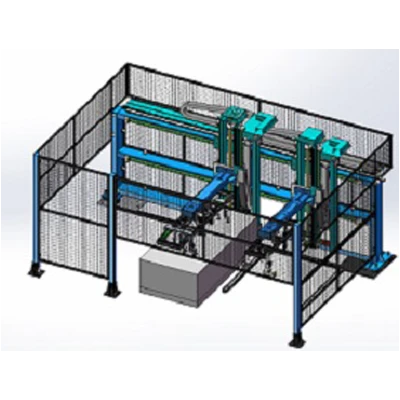

Seizing the glass and putting it to the transmission line.
1.Glass loading system is consisted of glass moving robot arm and paper picking robot arm.
2.The machine contains two glass storage stations and a paper storage station.
3.Sticlă mutare robot braț put sticlă la transmisie linie, at the same time hârtie picking robot arm remove the paper.
4.The machine driven by servo motor, the sucker draws glass to numpointed station.
5.Sticlă încărcare robot braț has consolă structură și hârtia cules robot braț is portal structură.
Main parametru
Module format: (1580-2000)mm*(800-1000)mm
Ciclu timp :<35s
Max capacity: >2468/day
Operator online: nici unul
Evaluat putere: 8.26kw
Presiune: 0.7MPa+0.1
Intrare voltaj:380V
Dimensiune: 4610mmx2780mmx2150mm
Avantaj
1.The machine uses steel structure with welding frame frame body, high resistance, reliability and fastness during loading.
2.The aspiratie placa de sticla suport este fabricat of poliuretan care va nu make print la the glass during loading.
3.Servo motor is precise and stabile functionare.
4.The machine is equipped with safety fence to ensure the safety of operation.
5.Reduce incertitudine de încărcare de operator, îmbunătățire ieșire.
6.The machine is full- automatic requiring no human interference.
|
